STEELWYN CORPORATION is a ISO certified company and also one of the oldest manufacturers of storage system in Eastern India

"USE STEEL SAVE TREES"

×
Slotted Angle Racks

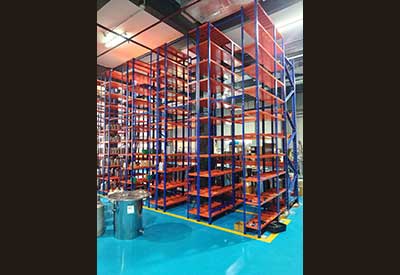

USAGE

  • Slotted Angle Racks are used for storing Goods, Materials, Tools, Accessories, Hosiery Goods, and Leather Goods Stationaries item, Grocery, Pharmaceutical Products.
  • These Racks are very handy & adjustable & the size of the Racks can be customized as per the client’s specification.
  • Our Slotted Angle Racks built from prime quality CRC sheet & HR sheet, which provides Stability & longability of our Products.
Slotted Angle Racks
Slotted Angle Racks

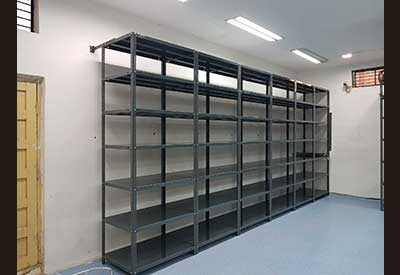

FEATURES

  • Customized design via expert Engineers Maximus space utilizations
  • Easy storage and retrieval
  • Adjustable Shelf
  • Anti-rust Treatment
  • Anti-treated Top guide
  • In this system vertical space is used to the Optimum
  • Our Products are rust free from moisture, Heat & dust

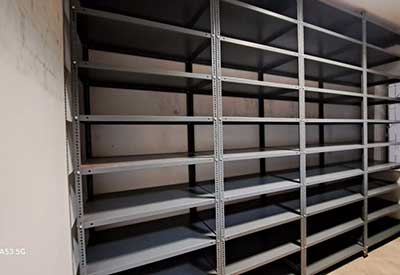

TYPES

  • Slotted Angle Racks
  • Slotted Angle Open Type Racks
  • Slotted Angle Closed Type Racks
  • Slotted Angle Frame Racks
  • Pigeon Hole Racks
  • Two-tier Racks
  • Three-Tier Racks
  • Hanging Type Racks

TECHNICAL SPECIFICATIONS

Standard size of Angle available:
40 X 40 X 2
40 X 40 X 3
60 X 40 X 2
80 X 40 X 3
Standard size of Shelves available:
900/1200mm (L)
900/375/450/600mm (D)
0.8/1/1.2mm thickness

Each Rack has four vertical Angles, Shelves and tightened with Nuts & Bolts.
Each Shelf can bear the load capacity ranging from 30kg to 500kg UDL per loading level.
Slotted Angle Racks
